one. Features and main uses:

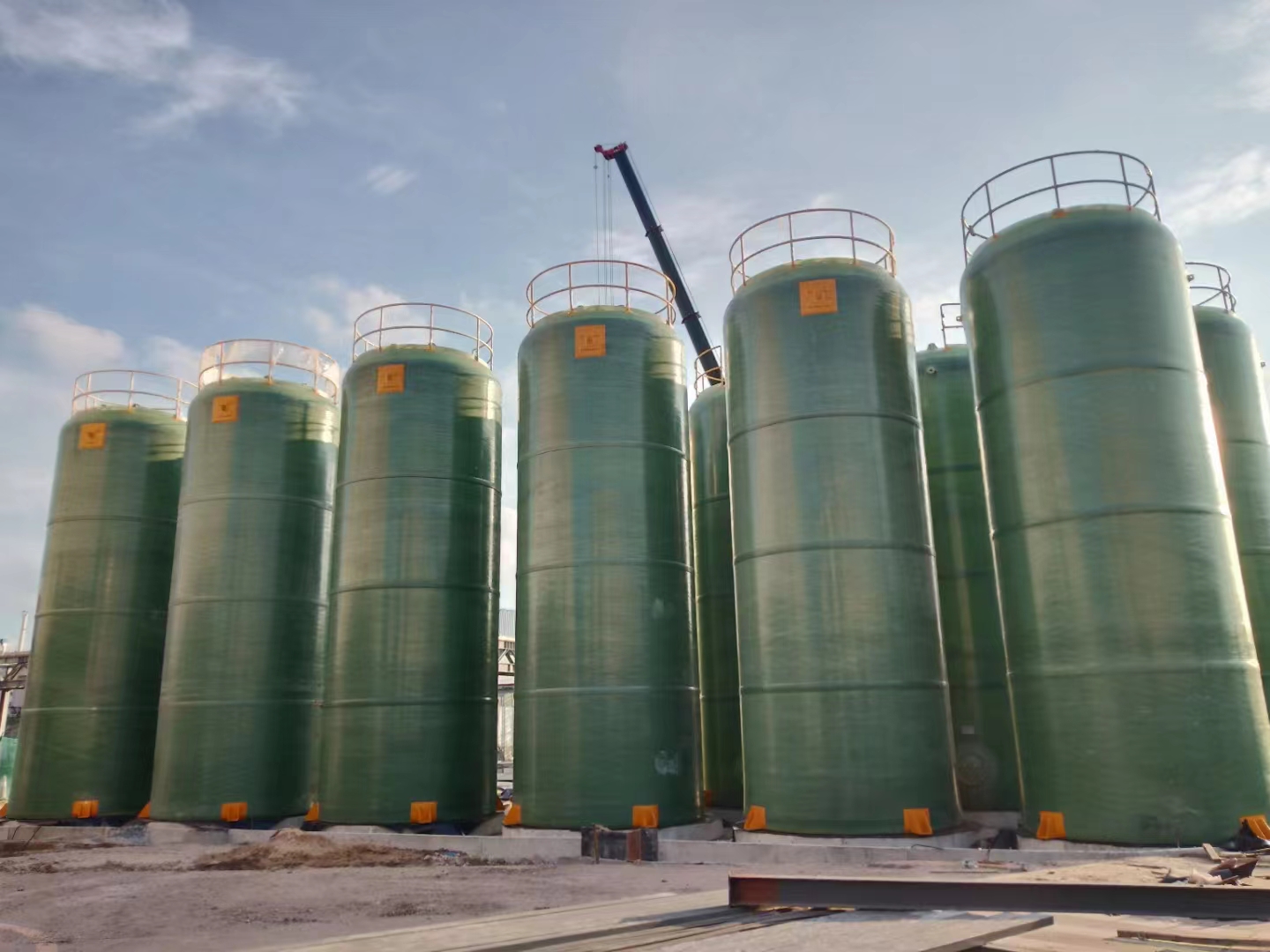

Winding 886 resin is an unsaturated polyester resin (modified) synthesized from phthalic anhydride, maleic anhydride and standard diols as main raw materials, and has been dissolved in styrene. With medium viscosity and medium reactivity, excellent mechanical properties, high elongation at break, especially suitable for winding process. FRP storage tanks and pipes made of glass fiber reinforced have excellent strength and toughness.
two. Technical index of liquid resin (25℃):
project | unit | Test indicators | Test Methods |
Exterior | --- | transparent light yellow liquid | GB/T8237.6.1.1 |
viscosity | Pa·s | 0.38-0.55 | GB/T 7193-2008 |
acid value | mgKOH/g | 16-24 | GB/T 2895-2008 |
gel time | Min（25℃） | 6.5-12.5 | GB/T 7193-2008 |
stability | H（80℃） | ≥24 | GB/T 7193-2008 |
Note: In a water bath at 25°C, add 2ml methyl ethyl ketone peroxide solution and 4ml cobalt isooctanoate solution to 100g resin
three. Physical properties of cast body (for reference only):
project | unit | test performance | Test Methods |
| | Cast body | |
Tensile Strength | MPa | ≥60 | GB/T2567-2008 |
Tensile modulus of elasticity | MPa | ≥2800 | GB/T2567-2008 |
elongation at break | % | ≥3.0 | GB/T2567-2008 |
Bending strength | MPa | ≥95 | GB/T2567-2008 |
Flexural modulus of elasticity | MPa | ≥3500 | GB/T2567-2008 |
Heat distortion temperature | ℃ | ≥65 | GB/T1634-2004 |
Barcol hardness | --- | ≥40 | GB/T3854-2005 |
Note: (1) The sample method of the casting body shall be carried out according to GB/T8237-2005; the temperature is 25°C, the curing system: accelerator RCA 1.0%, curing agent M-50 1.5%.
(2) Post-curing treatment of cast body: room temperature × 24 hours + 60°C × 3 hours + 80°C × 2 hours;
Four. Precautions:
1. Please stir evenly in the packaging barrel before use, or pour out all the resin in the packaging barrel and stir evenly before use.
2. The transportation shall comply with the regulations on the transportation and loading and unloading of dangerous chemicals in Chapter 5 of the State Council's "Regulations on the Safety Management of Hazardous Chemicals". The product should be stored in a cool place below 25°C, avoid fire, and isolate heat sources. The shelf life of storage below 25°C is 3 months.
five. Regarding product safety data (MSDS):
Before using this product, please be sure to read the MSDS of this product in detail.
